DOME PACKAGE - DOME/KITCHENETTE/BATHROOM VANITY & FURNITURE
Broad vision. Careful thought. Aussie features in our design, which is our large 1m x 1m windows for our hot summers, also included is the solar fans to extract heat as eco-friendly as possible, energy wise.
DOME - Our domes include cottong insulation (other insulation options available), steel powder coated frame, pin coded Aluminium frame with tempered glass inserts & Aussie designed large windows for cross ventilation
DOME - Our domes include cottong insulation (other insulation options available), steel powder coated frame, pin coded Aluminium frame with tempered glass inserts & Aussie designed large windows for cross ventilation
DOME - FEATURES OUR PIN CODED DOORS WHICH ARE PERFECT FOR COMMERCIAL GLAMPING
DOME - Our domes include cottong insulation (other insulation options available), steel powder coated frame, pin coded Aluminium frame with tempered glass inserts & Aussie designed large windows for cross ventilation
DOME - Our domes include cottong insulation (other insulation options available), steel powder coated frame, pin coded Aluminium frame with tempered glass inserts & Aussie designed large windows for cross ventilation
DOME - Our domes include cottong insulation (other insulation options available), steel powder coated frame, pin coded Aluminium frame with tempered glass inserts & Aussie designed large windows for cross ventilation
DOME FRAME INCLUSIONS ALL OUR DOMES INCLUDE OUR FULL FIT OUT, PLEASE DISCUSS A QUOTE IF PACKAGE NOT REQUIRED.
Be a guest at your own room.
Twin domes please contact us for a quote.
free standing kitchenette & bathroom vanity & accessories
DOME BASIC INCLUSIONS LISTED - OPTIONAL UPGRADES AVAILABLE
INCLUSIONS: FRAME, OUTER MEMBRANE, INSULATION, VENTS x 2, DOOR (new design of keypad lock), LARGE AUSSIE STYLE ZIP/FLYSCREENED WINDOWS x 2, PLEASE ADD GST LISTED IN DESCRIPTION - DELIVERED TO YOUR DOOR FOR ALL MAJOR CITIES & SUBURBS (REGIONAL AND ACREAGE please contact us to discuss your access issues and a quote for the added domestic leg we still alway deliver to your door, however, these deliveries are heavy load )
DOME 4M
(area 12.56³) (height 2.4m)
Outer cover: 2/3 850g/m2 black-out white color with 1/3 transparent PVC fabric. (waterproof, fireproof(B1), uv resistance.
Main frame: GB Q235 steel tubes(20*1.6mm) Surface treatment: Hot galvanized, white powder coated

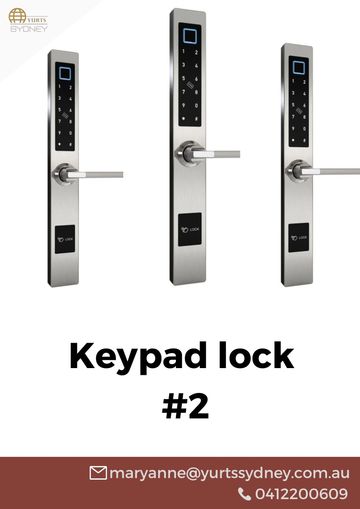

Door: White aluminum alloy double panel (5+12A+5mm) tempered glass door(0.95x2m) with pin code lock (better insulation and soundproof) wooden crated
Insulation: 12mm white insulation cotton for 4m
Roll up windows: Large 1 x 1.2m fly screened
DOME 5M INCLUDES SHIPPING
(area 19.625m³) (height 2.9m)
Outer cover: 2/3 850g/m2 black-out white color with 1/3 transparent PVC fabric. (waterproof, fireproof(B1), uv resistance.
Main frame: GB Q235 steel tubes(20*1.6mm) Surface treatment: Hot galvanized with white powder coated
Door: White aluminum alloy double panel (5+12A+5mm) tempered glass door(0.95x2m) with keypad lock (better insulation and soundproof) wooden crated
Insulation: 12mm white insulation cotton
Roll up windows: Large 1 x 1.2m fly screened
DOME 6M
(area 28.26m³) (height 3.5m)
Outer cover: 2/3 850g/m2 black-out white color with 1/3 transparent PVC fabric. (waterproof, fireproof(B1), uv resistance.
Main frame: GB Q235 steel tubes(20*1.6mm) Surface treatment: Hot galvanized with white powder coated
Door: White aluminum alloy double panel (5+12A+5mm) tempered glass door(0.95x2m) keypad lock (better insulation and soundproof) wooden crated
Insulation: 12mm white insulation cotton
roll up windows: Large 1 x 1.2m fly screened
DOME 7M
(area 38.465m³) (height 4.3m)
Outer cover: 2/3 850g/m2 black-out white color with 1/3 transparent PVC fabric. (waterproof, fireproof(B1), uv resistance.
Main frame: GB Q235 steel tubes(20*1.6mm) Surface treatment: Hot galvanized with white powder coated
Door: White aluminum alloy double panel (5+12A+5mm) tempered glass door(0.95x2m) with keypad lock (better insulation and soundproof) wooden crated
Insulation: 12mm white insulation cotton
Roll up windows: Large 1 x 1.2m fly screened
DOME 8M
(area 50.24m³) (height 4.9m)
Outer cover: 2/3 850g/m2 black-out white color with 1/3 transparent PVC fabric. waterproof, fireproof(B1), uv resistance.
Main frame: GB Q235 steel tubes(28*1.6mm) Surface treatment: Hot galvanized with white powder coated
Door: White aluminum alloy double panel (5+12A+5mm) tempered glass door(0.95x2m) with keypad lock (better insulation & soundproof) wooden crated
Insulation:12mm white insulation cotton
Roll up windows: Large 1 x 1.2m fly screened
Vents x 2
DOME 9M
(area 63.585m³) (height 5.5m)
Outer cover: 2/3 850g/m2 black-out white color with 1/3 transparent PVC fabric. (waterproof, fireproof(B1), uv resistance.
Main frame: GB Q235 steel tubes(28*1.6mm) Surface treatment: Hot galvanized with white powder coated
Door: White aluminum alloy double panel (5+12A+5mm) tempered glass door(0.95x2m) with keypad lock (better insulation and soundproof) wooden crated
Insulation: 12mm white insulation cotton
Roll up windows: 1 x 1.2m fly screened
vents
DOME 10M
(area 78.5m³) (height 5.5m)
Outer cover: 2/3 850g/m2 black-out white color with 1/3 transparent PVC fabric. (waterproof, fireproof(B1), uv resistance.
Main frame: GB Q235 steel tubes(28*1.6mm) Surface treatment: Hot galvanized with white powder coated
Door: White aluminum alloy double panel (5+12A+5mm) tempered glass door(0.95x2m) with keypad lock (better insulation and soundproof) wooden crated
Insulation: 12mm white insulation cotton
Roll up windows: 1 x 1.2m fly screened
DOME 12M
(area 113.04m³) (height 6m)
Outer cover: 2/3 850g/m2 black-out white color with 1/3 transparent PVC fabric. (waterproof, fireproof(B1), uv resistance.
Main frame: GB Q235 steel tubes (32 x 2mm) Surface treatment: Hot galvanized with white powder coated
Door: White aluminum alloy double panel (5+12A+5mm) tempered glass door(0.95x2m) with keypad lock (better insulation and soundproof) wooden crated
Insulation: 12mm white insulation cotton
Roll up windows: 1 x 1.2m x 2
FEEL FREE TO CALL MARYANNE ON 0412200609 ANY MORNING BEFORE 12 INCLUDING WEEKENDS FOR ANY ADVICE YOU MAY REQUIRE, WE HAVE YEARS OF EXPERIENCE & A WEALTH OF KNOWLEDGE TO ASSIST YOU IN YOUR PROJECT, MAY IT BE A SMALL ACREAGE 1 DOME FOR EXTRA ACCOMMODATION OR AIRBNB ETC. TO THE COMMERCIAL PROJECTS FOR CARAVAN PARKS ETC. DOCUMENTS AVAILABLE FOR INSURERS/BANKS
basics which every aussie design needs for our climate
To commence an order 50% payment required, final payment prior to shipping
We now deliver to your door, prices listed below include shipping to your major city & suburbs, regional clients please advise your address details and we will quote to your door

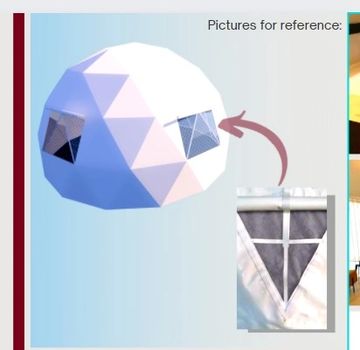

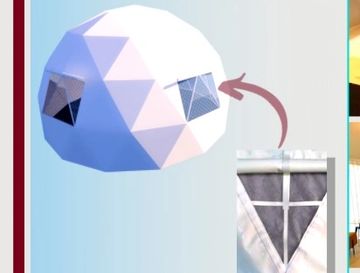

Our Aussie designed windows
size 1.2x1m, with anti-mosquito mesh fabric, we have been designing yurts and now domes for a few years now and cross ventilation for our long hot summers is vital, the first change to the dome design were these large windows x 2 at least is part of our basic dome package

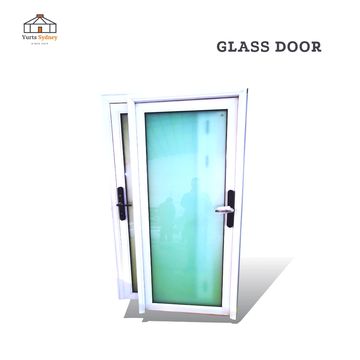

DOOR
White aluminum alloy double panel(5+12A+5mm) tempered
glass door(0.95x2m) with magnetic card lock and cards
(better insulation and soundproof) packed in wooden box

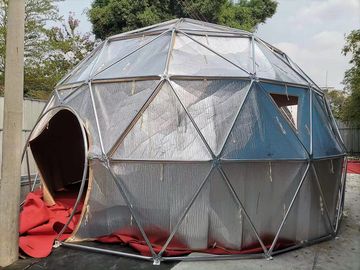

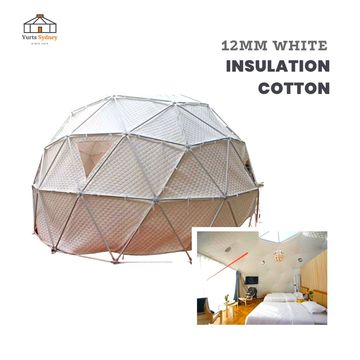

INSULATION
12mm white insulation cotton.
We have a range of insulation available, please message us to discuss
INSULATION - extreme hot & humid areas
Aluminium with canvas backed interior, (also in sections for easy cleaning) COLOURS interior WHITE & KHAKI
4m Dome:
5m Dome:
6m Dome:
7m Dome:
8m Dome:
9m Dome: $5823
The costs shown here do not include shipping costs if buying separately

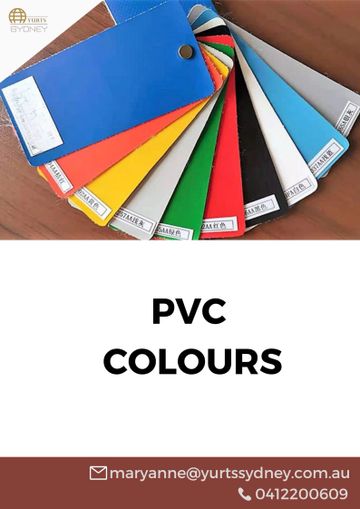

EXTERIOR COLOUR CHART
Outer cover: 2/3 850g/m2 black-out white color with 1/3 1000g transparent (bay window) PVC fabric. (waterproof, fireproof(B1),uv resistance.)
Vents
Add a description about this itemArched triangular pvc ventilation window with mosquito net
Cover tightener
Steel to make the cover more suitable with the tent frame.
UPGRADES / optional
To commence an order 50% payment is required, final payment prior to shipp
We now deliver to your door, prices listed below include shipping to your major port, please advise your address details and we will quote to your door

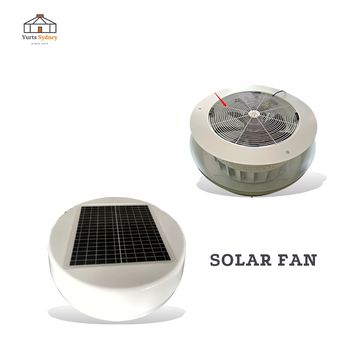

Solar Fan
+ gst $71.60
Solar Roof Ventilation Exhaust Fan - White 15W polycrystalline solar panels (354x354x4.5mm) IP68 Brushles DC Motor 14 inch blade (tuyere diameter 314 mm) Round fuselage, round base: 495x495mm, Added adapter, CE standard, including 3M wire.

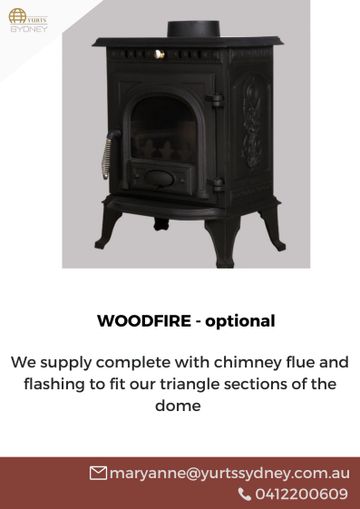

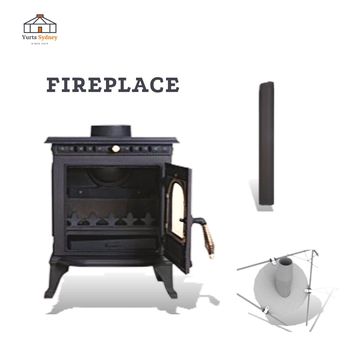

FIREPLACE
Size:470*335*630mm(length*width*height) Net weight: 90kg Gross weight:95kg Main window glass size: 270 * 235mm Power:10.5kw Chimney caliber:125mm with tools Marble for internal combustion

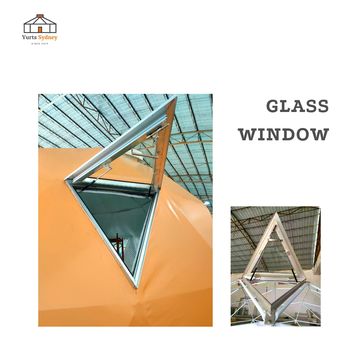

Glass Window
Aluminum alloy triangular glass ventilation windows for..
4m: $600
5m: $600
6m: $600
7m: $700
8m: $800
9m: $800

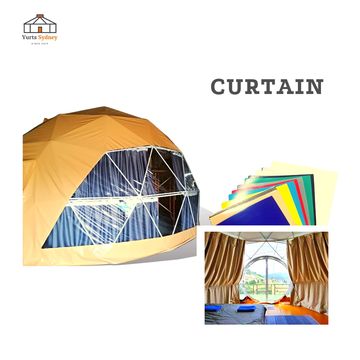

CURTAIN
Full shading luxury 100% polyester gray curtain for dome transparent part window with pulley track(color optional).
4m: $400
5m: $450
6m: $500
7m: $550
8m: $700
9m: $900

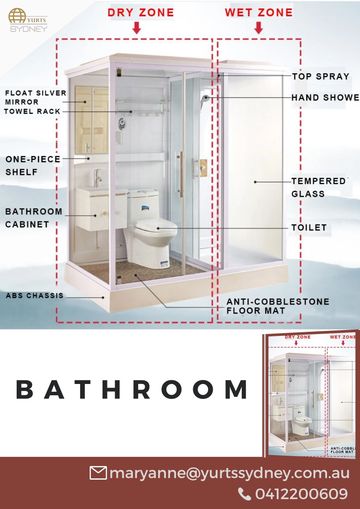

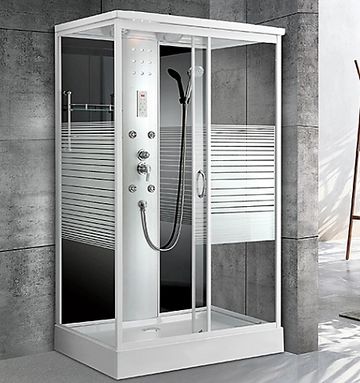

SHOWER ROOM
+ gst $183
Size:800x1200x2100mm Material: Tempered Glass, many of our clients are off grid, therefore, we have introduced our new bathrooms, order items without your toilet, we also have clients suggestions for toilet options
VANITY & MIRROR code X-070
+ gst $76
- Main cabinet 600 x 460 x 850cm,
- Material - plywood,
- Coating - hand painted
- Basin - One piece ceramic basin with drainage
- Soft closing - sliders & hinges
Many of our clients are off grid, therefore, we have introduced our new bathrooms, order items without your toilet, we also have clients suggestions for toilet options

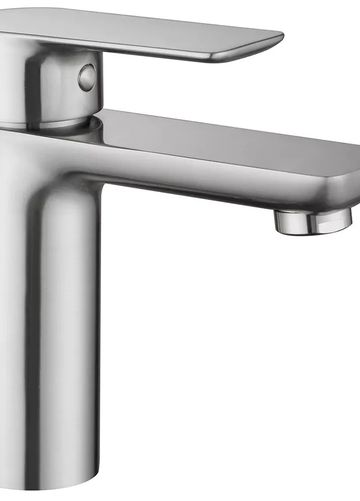

FAUCET pictured in GUN METAL,variety of colours available - code 02411
+ gst $8
- Watermark (Australian international code) cartridge & hose
- Material - Brass
- Coating - chrome
- code - 02411
- Colours -Chrome, black, gold, gun metal, rose gold & white please request a photo to view
Many of our clients are off grid, therefore, we have introduced our new bathrooms, order items without your toilet, we also have clients suggestions for toilet options

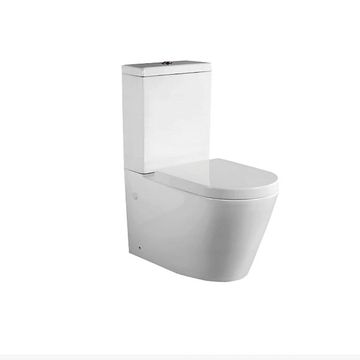

TOILET WATERMARK CERTIFIED code - CT001
+ gst $29.60
- Watermark (Australian international code) wash down 2 piece ceramic toilet
- 690 x 370 x 850cm
- Soft closing PP seat cover
- P-trap 180mm roughing in
Many of our clients are off grid, therefore, we have introduced our new bathrooms, order items without your toilet, we also have clients suggestions for toilet options

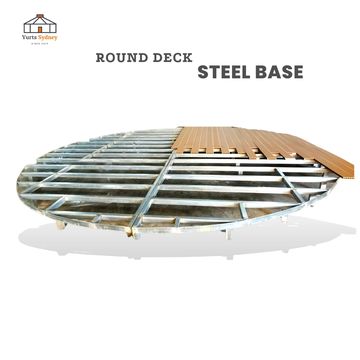

PLATFORM STEEL FRAME
Galvanized steel, connected by high strength bolts. SHIPPING NOT INCLUDED will be calculated with dome or yurt or on its own
*4.5x4.5 meters for diameter 4m dome: $3850
* 5.5x5.5 meters for diameter 5m dome: $5200
* 6.5x6.5 meters for diameter 6m dome: $6970
* 7.5x7.5 meters for diameter 7m dome: $8780
* 8.5x8.5 meters for diameter 8m dome: $11600
* 9.5x9.5 meters for diameter 9m dome: $13560
Prices listed here have no shipping costs included, materials only, priced to accompany our structures

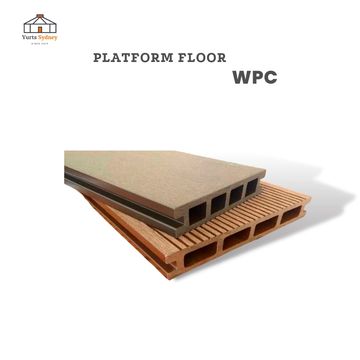

PLATFORM FLOOR
*4.5x4.5 meters for diameter 4m dome: $2700
* 5.5x5.5 meters for diameter 5m dome: $3600
* 6.5x6.5 meters for diameter 6m dome: $4430
* 7.5x7.5 meters for diameter 7m dome: $5540
* 8.5x8.5 meters for diameter 8m dome: $6830
* 9.5x9.5 meters for diameter 9m dome: $8290

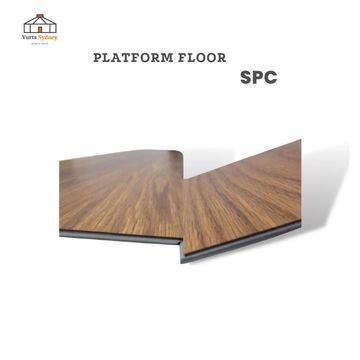

SPC FLOOR,10% gst needs to be added
SPC floor main components: polymer resin, lime powder, waterproof, flame retardant (b1).
Supplied in planks, cut to size for your requirements
Diameter 4m dome: $800
Diameter 5m dome: $1330
Diameter 6m dome: $1880
Diameter 7m dome: $2490
Diameter 8m dome: $2990
Diameter 9m dome: $3780
BASE
white aluminum alloy double panel(5+9A+5mm) tempered glass door(0.95x2m) with key pad lock (better insulation and soundproof) packed in wooden box
Cover tightener
Steel to make the cover more suitable with the tent frame.
DOMES DESIGN UPGRADES
*prices are subject to change without prior notice
8m SQUARE DECK, $14,000
8.5m ROUND DECK, $15,500
8.5m ROUND DECK, $15,500
- Steel square base 8 metres
- pre-welded just bolt together
- WPC - provided in plank form, cut to your requirements
- WPC - 7 colours to choose from as pictured
- + SHIPPING WE NOW DELIVER TO YOUR DOOR, therefore, we need your details and we will send you the invoice from our shipping agent to show total transparency YOU PAY WHAT WE PAY
8.5m ROUND DECK, $15,500
8.5m ROUND DECK, $15,500
8.5m ROUND DECK, $15,500
- Steel square base 8.5 metres
- pre-welded just bolt together
- WPC - provided in plank form, cut to your requirements
- WPC - 7 colours to choose from as pictured
- + SHIPPING WE NOW DELIVER TO YOUR DOOR, therefore, we need your details and we will send you the invoice from our shipping agent to show total transparency YOU PAY WHAT WE PAY

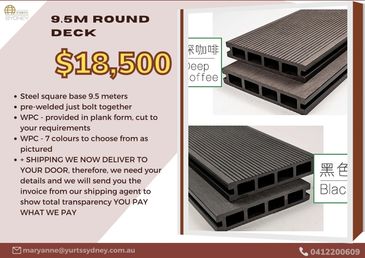

9.5m ROUND DECK, $18,500
8.5m ROUND DECK, $15,500
9.5m ROUND DECK, $18,500
- Steel square base 9.5 metres
- pre-welded just bolt together
- WPC - provided in plank form, cut to your requirements
- WPC - 7 colours to choose from as pictured
- + SHIPPING WE NOW DELIVER TO YOUR DOOR, therefore, we need your details and we will send you the invoice from our shipping agent to show total transparency YOU PAY WHAT WE PAY
Camphor Laurel hardwood wooden yurts, luxury yurt, customised by clients
DOME OPTIONS - woodfire stove, bathroom etc
Our DOMES are customised to suit your requirements, we help with your design

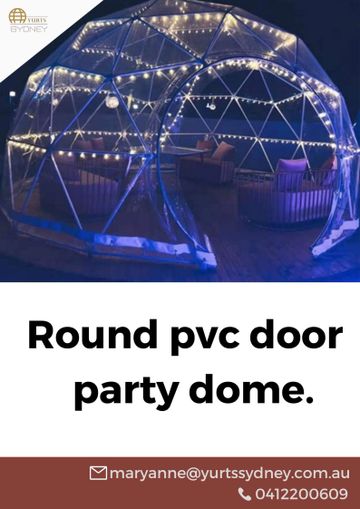

LARGE GEODESIC DOMES - WEDDINGS & EVENTS
Commercial job in the Maldives supplied by our DOME & GLAMPING manufacturer
Email for a detailed PDF price list
WOODEN DECKS WITH UNDERFLOOR INSULATION-HANDMADE, KIT FORM
Oak floor with Camphor Laurel base, includes insulated underflooring. Other option is square galvanised steel frame, SOLD SEPARATELY message for a quote
